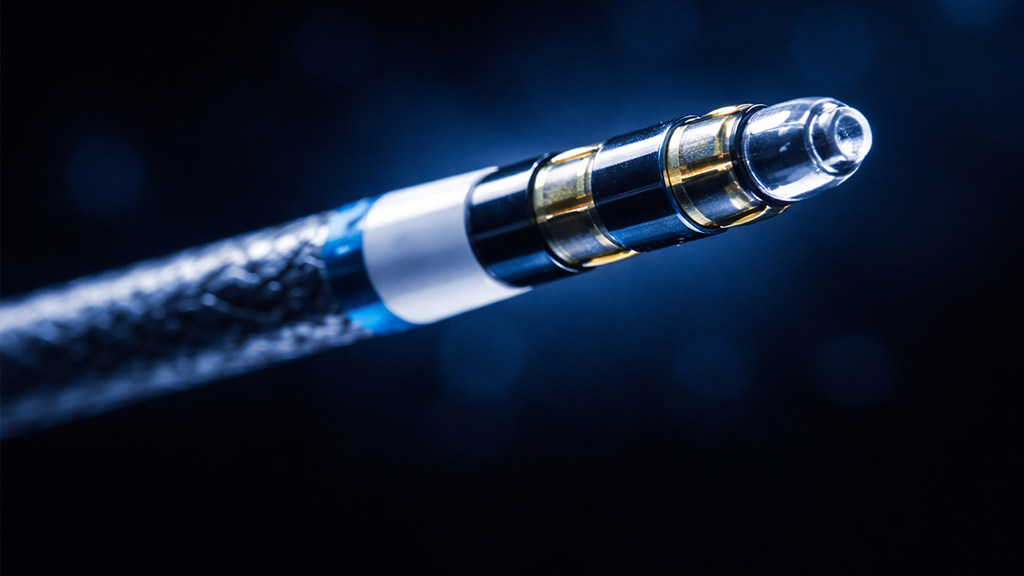

Electrophysiology manufacturing for the most complex catheters in the field
Ascential delivers automated production systems for the full Electrophysiology (EP) catheter workflow — from tube prep and shaft build-up through electrode fabrication, distal-end assembly, and qualification-ready end-of-line test. Our expertise includes:
- Ablation and Mapping Catheter Production, including Pulsed Field Ablation (PFA)
- Electrode Component Manufacturing and High-Electrode-Mapping Assembly
- Catheter Shaft Build — Tube Prep, Braiding/Reinforcement, Lamination, and Reflow
- Distal-End Build — Tip Bonding, Forming, Overmolding, and Strain Relief
- Steerable Shaft and Sheath Assembly
- Electrical Test, Calibration, and Verification
- In-Line Inspection, UDI Marking, and Traceability
Get Your 15-Minute Consultation
Solutions
Production automation across the complete EP catheter workflow
Ablation & Mapping Catheter Production Systems
Scale your catheter program with integrated production systems built around your device. Ascential delivers end-to-end process control, inspection, and traceability from raw material to finished assembly.
Electrode Component Fabrication
Achieve consistent geometry and feature quality. We can co-automate laser cutting, welding, soldering, fine wire handling, continuity testing, wire lead identification, PCB handling, wire tracing and confirmation, as well as 3D inspection steps, to ensure electrode components meet spec at scale, every cycle.
Catheter Shaft & Distal-End Build
Streamline your most complex build steps like tube prep, braiding, reflow, lamination, tip bonding, and forming in controlled automation cells engineered to the dimensional and structural parameters your catheter performance depends on.
Steerable Shaft & Sheath Assembly
Ensure precision and repeatability across steerable shaft construction and sheath assembly, with controlled pull-wire routing and dimensional verification at every critical station.
Inspection, UDI Marking, & Testing
Catch defects and verify performance without slowing throughput. We integrate dimensional inspection, UDI marking, and per-serial traceability designed to support your regulatory submissions and post-market surveillance.
Process Development & Qualification Support
De-risk your program before committing to a full build. We run proof-of-principle engineering to qualify process requirements, which determine equipment specifications for IQ/OQ/GAMP packages — from URS through FDS/SDS and design documentation.
Capabilities
Technical depth EP catheter programs demand
Structural heart programs carry Class III device stakes. Operator variability, traceability gaps, and qualification bottlenecks can derail a program at the worst possible time. Ascential builds systems that address those risks from the first design review.
Integrated Multi-Process EP Catheter Production
Eliminate inter-process handoffs and reduce variability by consolidating your full EP catheter production sequence into controlled automation cells. We engineer the complete workflow so your team moves from raw materials to qualified assembly faster and with fewer failure points.
Qualification-Ready Inspection & Traceability
Build compliance into your line from day one rather than retrofitting it at the time of submission. Dimensional verification, defect detection, barcode and UDI traceability, and data capture are engineered into every station.
Precision Electrode Component Fabrication
Meet the precision demands of next-generation mapping and ablation catheters. We can deliver integrated automated electrode fabrication cells fit for clean room environments, so you can count on every component arriving at assembly to spec, without exception.
First-of-Kind Process Development for Novel EP Devices
Bring your novel EP device to regulated manufacturing without betting on an unproven process. We run proof-of-principle engineering, so by the time you commit to a full system build, the workflows are already proven.
Why Choose Ascential?
When you engage our team, you tap into 70+ years of experience delivering mission-critical solutions that bridge precision engineering, automation, and medical manufacturing knowledge from 7 highly specialized firms.
PFA & Novel Modality Experience
Ascential has delivered PFA catheter electrode fabrication systems combining laser cutting, welding, 6-axis robotics, and 3D inspection in a Class 100K cleanroom. In a market growing at 14% CAGR driven by PFA adoption, that experience matters.
Full Catheter Production Scope
From tube prep through final testing, Ascential can scope individual production stations to add into existing workflows or a complete integrated cell. This eliminates the risks that come with a mid-program handoff to a second vendor or production scale-up.
Regulatory Confidence at Every Stage
Our integrated team has deep experience building and modifying systems for customers operating under 21 CFR Part 820, with GAMP documentation and data capture designed to support 21 CFR Part 11 requirements. Get access to ISO 13485-certified facilities within our MLS network.
Frequently Asked Questions
Get answers to common questions about our electrophysiology device manufacturing capabilities.
Yes, we have delivered a first-of-its-kind PFA catheter program in a single integrated Class 100K cleanroom cell, complete with GAMP documentation.
Yes, our PFA catheter work involved fabricating electrode components to tight geometry and feature quality specifications for a device with a high-electrode-count assembly. We integrated 3D inspection and barcode traceability software at each station.
Yes. Ascential has delivered systems covering the full catheter production sequence: tube prep, braiding, reflow, shaft processing, tip bonding, forming, overmolding, and final test. We can scope individual stations or a complete production cell.
Ascential offers proof-of-principle (PoP) engineering as a first phase — develop and qualify the process before committing to a full fixed-price build. This de-risks first-of-kind programs.
We scope and budget for IQ/OQ support documentation as a program deliverable and build GAMP packages where required. We build data capture into your systems to support 21 CFR Part 11 requirements, while you own and execute PQ.
Yes, we can offer access to certified sister sites within the Ascential network (facilities in the U.S., South America, Europe, and Southeast Asia) for programs requiring ISO 13485 or regulated manufacturing environments.
